Machine specification

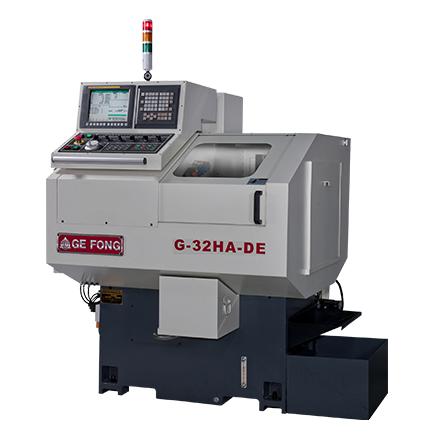

MODEL G-25/30/32 HA-DE G-25/30/32 HA-D G-25/30/32 HA-T Axis name X, Y, Z, C X, Y, Z, C X, Z Bar capacity 25 / 30 / 32 mm Max. turning length Bar diameter x 3 Spindle bore 34 mm Collet type 161E / 163E / 164E 3-jaw chuck size 5 inch X-axis travel (Radius/dia.) 340 / 680mm Z-axis travel (if collet) 95mm (Between collet and cut-off tool holder) 8-position tool turret None None Standard Spindle motor (rated/15min.) 2.2 / 3.7 KW Max. spindle speed 6,000 RMP Live tool motor/speed 0.75 kw / 4000 RPM None Axis motor 0.75 KW Face live tool No s/collet 3/ER11 (option 2/ER20) None None Cross live tool No.s 3 / ER16 4 / ER16 None OD tool shank size 16 x 16 mm Fixed ID tool collet ER16 Boring tool shank dia. 20mm Spindle center height 900 mm Packed machine size 1,850 x 1,550 x 2,080 mm Packed machine weight 1450kg Standard Accessories
ITEM 1. Syntec / Mitsubishi / Fanuc controller 2. Standard tools (setup, adjustment) 3. Coolant flow sensor and pump 4. Hydraulic collet chuck 5. Tools, collets for one part requested, but special tools not included. 6. Tool holders (refer to picture) 7. Product catcher 8. Product box Optional Accessories
ITEM 1. Magazine type auto bar feeder 2. 3-jaw hydraulic chuck (5 inch) 3. Foot switch (only for single piece working) 4. Chip conveyor & Cart 5. Oil mist collector 6. Tool holders (refer to picture) ＊ All specification are subject to change without notice in advance
＊ Spindle collet type for G-32HA series can be local type as option, other than 164E.
-

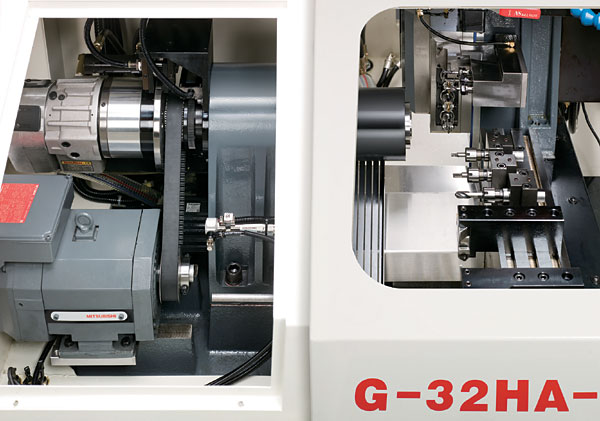

- Specialized precision CNC lathe for component machining, ID / OD / cross / off-center end working can be done on the same single machine.
- Cs contour axis, available for arbitrary degree spindle-locked indexing or contouring (like engraving, etc).
- On request, special-purpose CNC machine for screw driver manufacturing is also available.
- Center height of OD tool can be adjusted easily.
- Interchangeable between cross rotary ER16 collet holder & fixed OD tool (Ø18mm) holder.

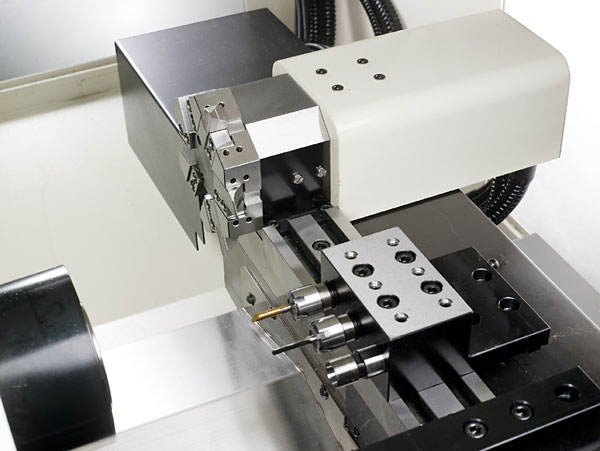

Special-purpose CNC machine for screw driver manufacturing (with X. Y Z, C axes)
Produced samples

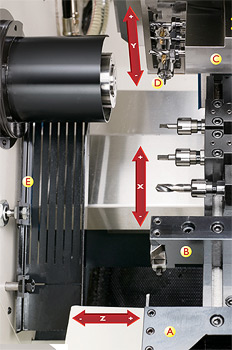

- Left-handed cut-off tool holder (I pc, standard)
- 2-position OD tool holder (tool shank radially mounted)(Standard, 2pcs for G-32HA-D, DE, I pc for G-32HA-T)
- 3-position face live tool rest (using ERI I collet)-detachable, mounted on 4th cross live tool position (for G-32HA-DE)

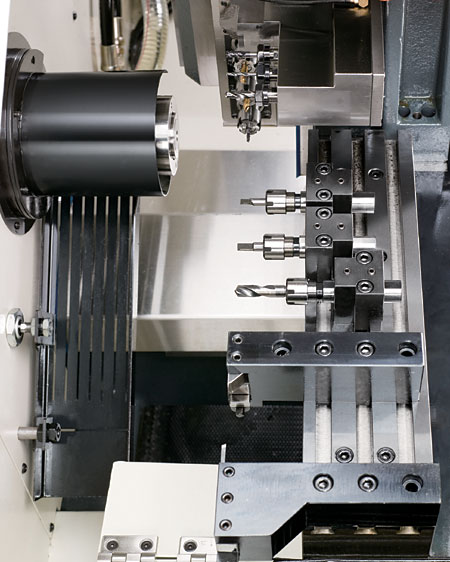

- Starting from the lowest tool (Ist) in order, totally 3 cross live tools can be changed to fixed OD tools.
- Product catcher

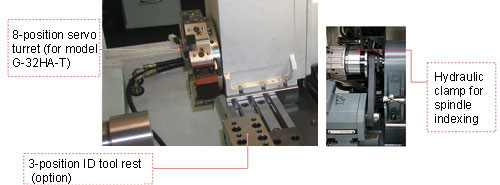

2-position ID tool rest (option)
I -position ID tool rest (standard. 3 pcs)
Fixed ID tool ER 16 collet holder (standard. 3 pcs)
Cross fixed dla. 18mm-shank OD tool holder (option)
For G-32HA-D, DE
2-position OD tool holder (shank axially mounted) (1pc. standard for G-32HA-D. DE option for G-32HA-T)
Note: Tool center height not adjustable
Fixed ID tool ER2O collet holder with nut (option)
ER 16 drIll collet nut (standard. 7 pcs for G-32HA-D.6 pcs for G-32HA-DE. 3pcs for G-32HA-T)
-
-
